KSC921JLFS
Manufacturer:
C&K Components
Mfr.Part #:
KSC921JLFS
Datasheet:
Description:

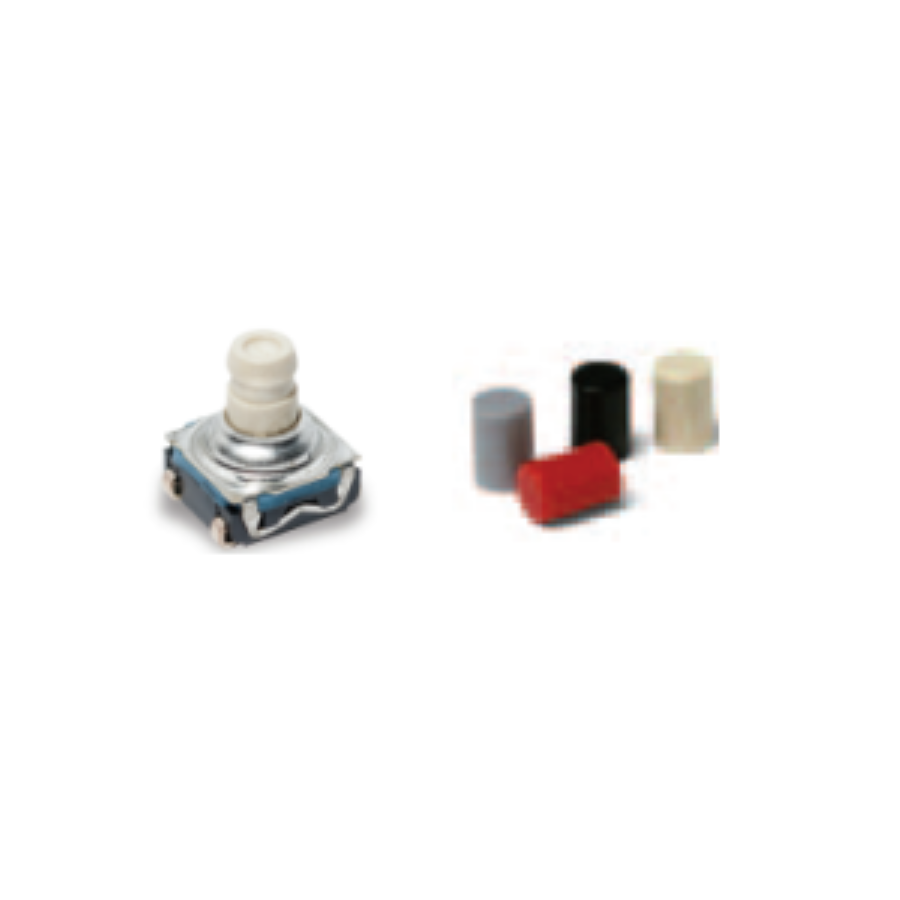

Tactile Switches SMD/SMT SPST-NO Off-Mom 1.7 N Straight
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 32 V |
| Length | 6.2 mm |
| Termination | J-Bend |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Power Rating | 1 W |
| Circuit Type | SPST-NO |
| Packaging | Bulk |
| Depth | 6.8 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Ratings | Dust Tight, IP67, Waterproof |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Silver |
| Current Rating | 50 mA |
| Max Current Rating | 50 mA |
| Max Voltage Rating (DC) | 32 V |
| Orientation | Straight |
| Throw Configuration | SPST |
| Number of Positions | 2 |
| Switch Function | Off-Mom |
| Illumination Type | Non-Illuminated |
| Operating Force | 1.7 N |
| Switch Travel | 400 µm |
| Mechanical Life | 300 kcycles |
| Contact Current Rating | 50 mA |
| Actuator Type | Plunger for Cap |
| IP Rating(Ingress Protection) | IP67 |
| Mounting Direction | Straight |
